Heavy-Duty Mobile Lumber Cart

Reported as-built · approximate

Dimensions & measured record

Reported materials · verify actual fit

Cut & material schedule

Three full-length LSL rails support the base; two additional full-length lower runners support the casters. Ten crossmembers connect the outer rails to the center rail, with five on each side. The center wall uses seven uprights, including both ends.

Your supplied products

Parts used & supplier links

Models and quantities are from your build brief. Prices and current stock are not verified. Commodity bolts, washers and locknuts can be sourced locally after checking the actual connection stack.

Reported bolt stacks · schematic order

Connections & concealed hardware

Caster centerlines reported from one end of each runner: approximately 3 in., 46-5/16 in., and 89-5/8 in. Verify against actual framing before drilling. Install strap crossbar bolts before the deck, and strap stem and handle bolts before closing the second wall skin.

General construction guidance · completed original

18-step assembly sequence

1. 01Cut the full-length LSL rails, lower caster runners, and ten short crossmembers.
2. 02Assemble the base grid square and reinforce its joints with structural angles.

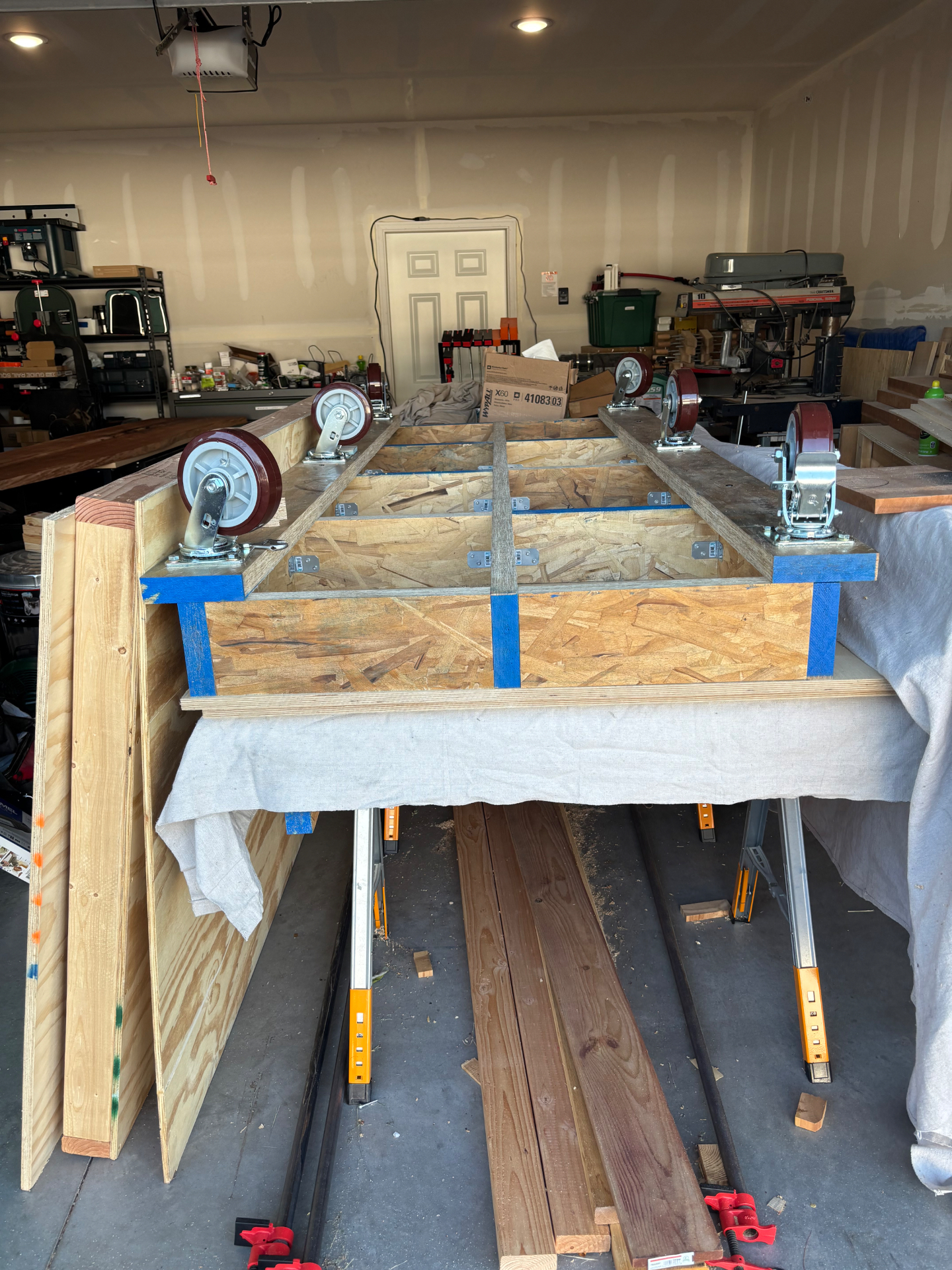

3. 03Attach the two continuous lower caster runners beneath the outer rails.
4. 04Through-bolt three casters to each runner; place the two total-lock casters where both pedals remain accessible.
5. 05Build the 2×4 center-wall frame and verify equal diagonals.

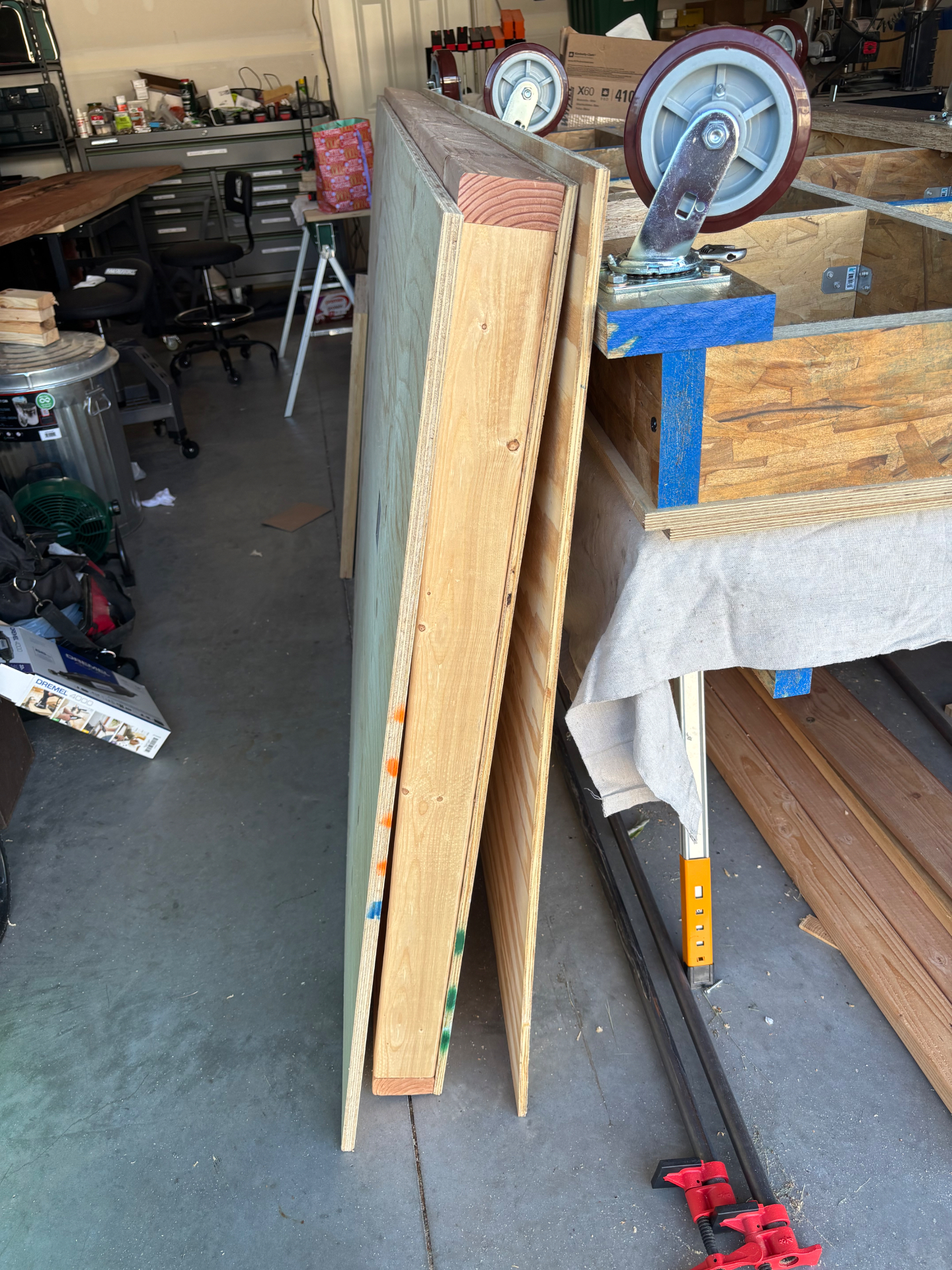

6. 06Glue and screw the first 1/2 in. wall skin while the frame is flat.
7. 07Cut and dry-fit the 3/4 in. base deck, but preserve access to the inside of the base until the T-strap crossbars are bolted.
8. 08Center the two T-straps on the base end centerlines; drill 21/32 in. clearance holes for the 5/8 in. bolts and through-bolt the horizontal crossbars.
9. 09Install the 3/4 in. plywood deck with Titebond III and countersunk #8 × 1-5/8 in. screws.
10. 10Lower the wall into position directly over the center LSL rail, brace it plumb, and fasten its bottom plate to the center rail.
11. 11Clamp each T-strap stem against its end wall upright, drill the wall holes, and install both vertical through-bolts.
12. 12Through-bolt the two end handles while the wall cavity remains accessible.
13. 13Tighten all strap and handle hardware without crushing the wood fibers.
14. 14Install the second 1/2 in. wall skin and trim its excess flush with a bearing-guided flush-trim router bit.

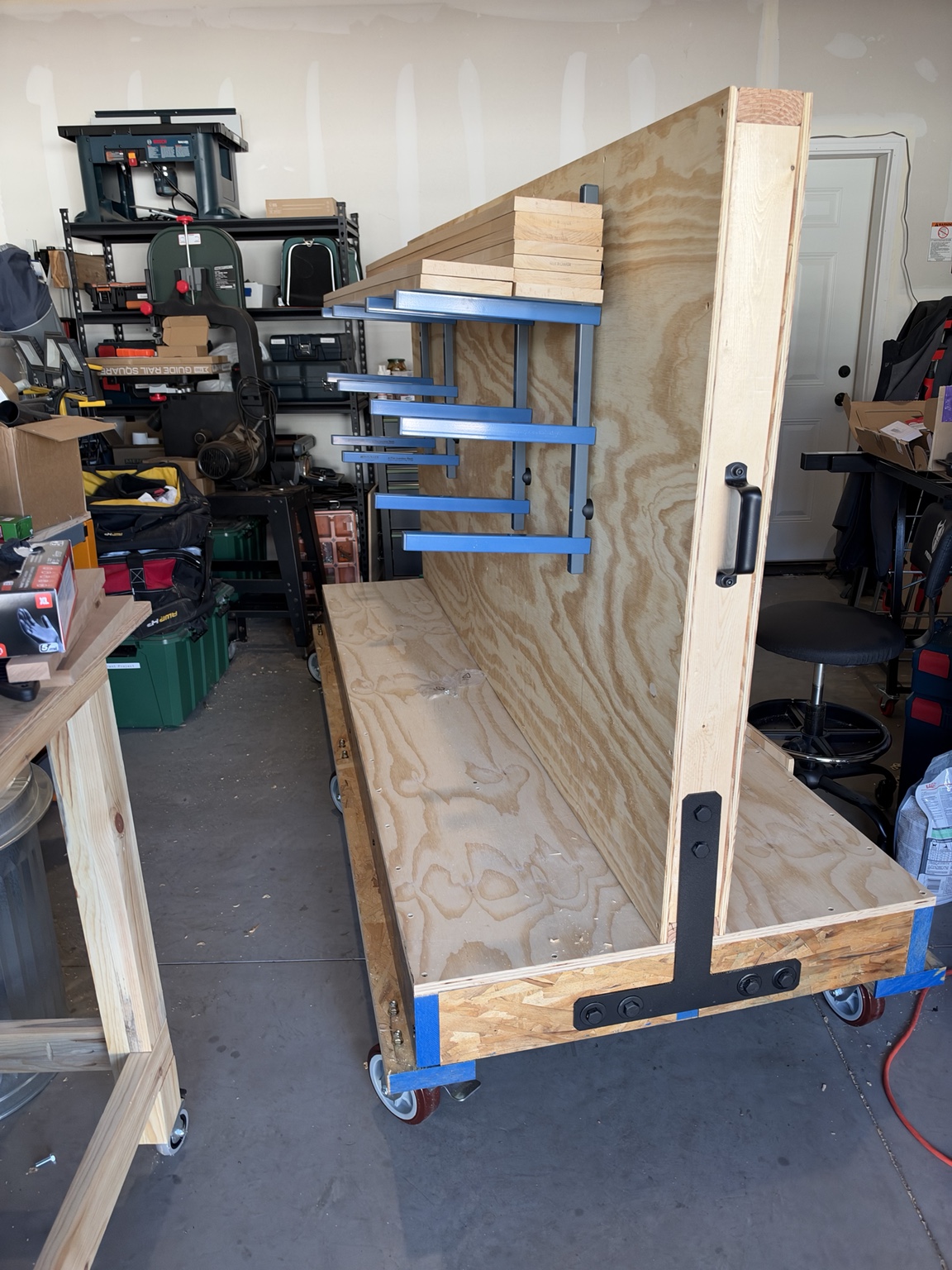

15. 15Mount the Rockler rack standards through the plywood into the 2×4 uprights.
16. 16Confirm the wall is plumb, every locknut is engaged, and each caster turns, swivels, and locks correctly.
17. 17Load dimensional lumber low and evenly before adding weight to upper rack levels.
18. 18Load sheet goods on the opposite side with their bottom edges on the deck and their upper edges leaning inward against the wall.

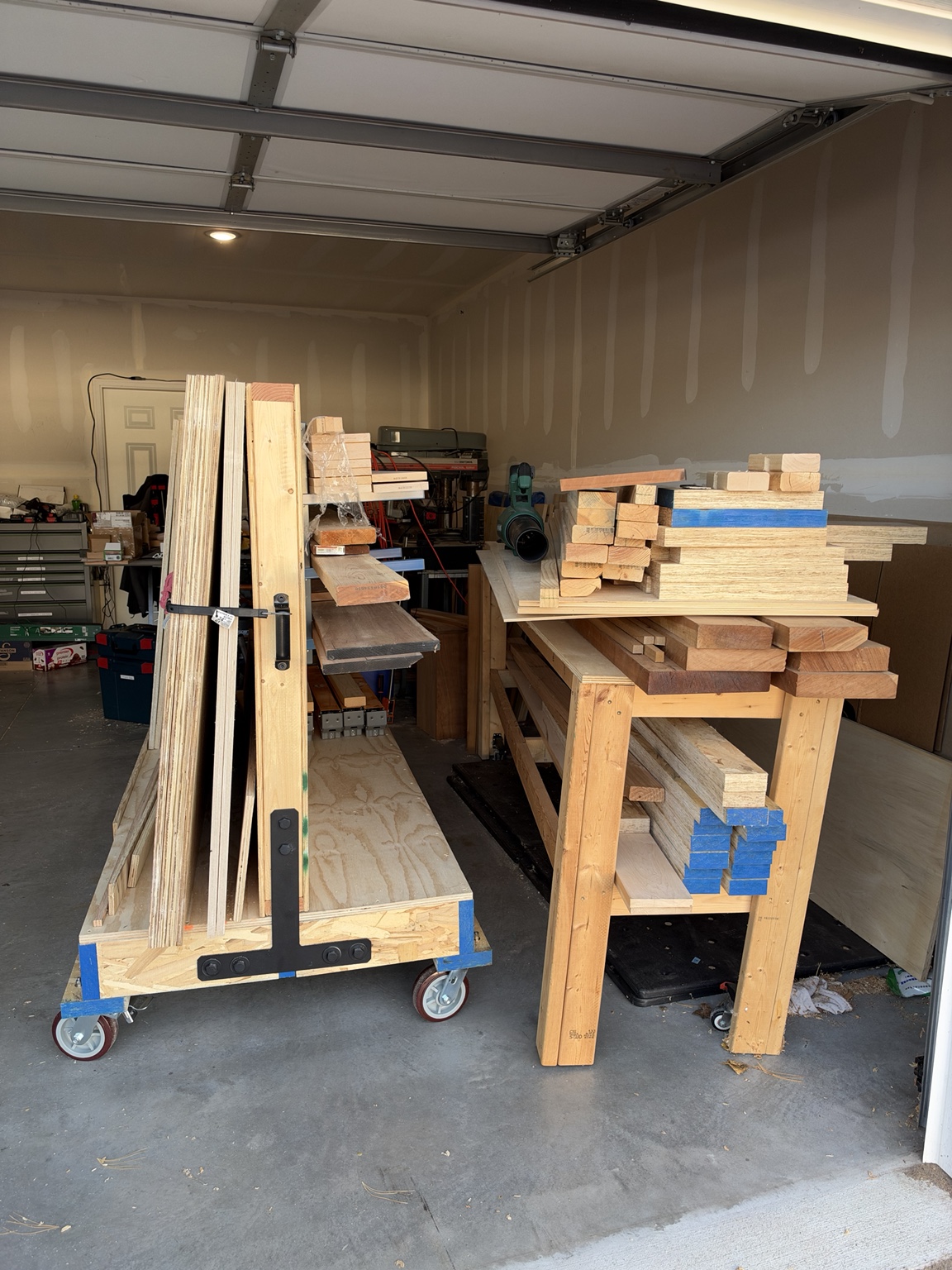

Loren’s garage · actual build record

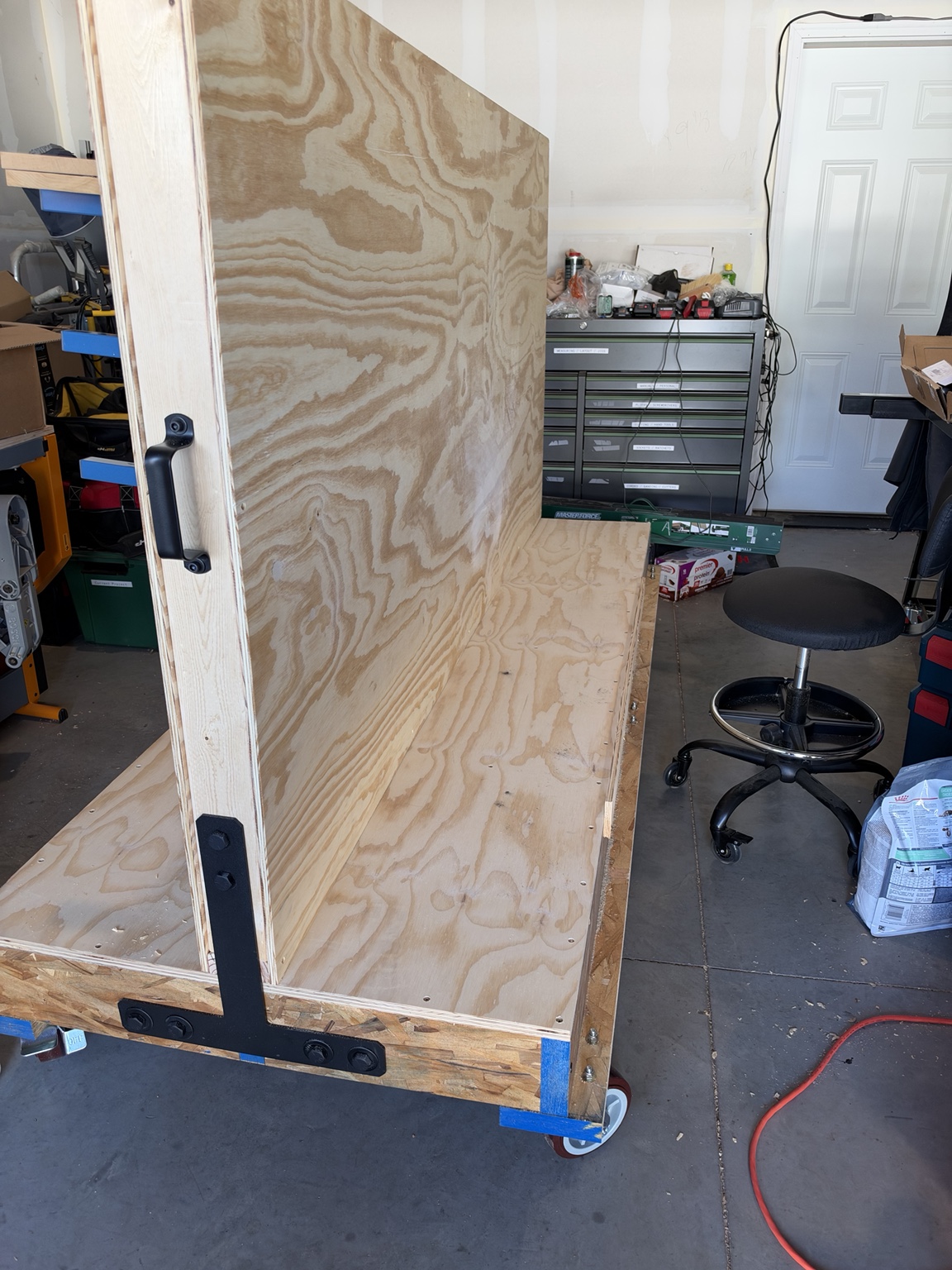

Completed build & construction photos

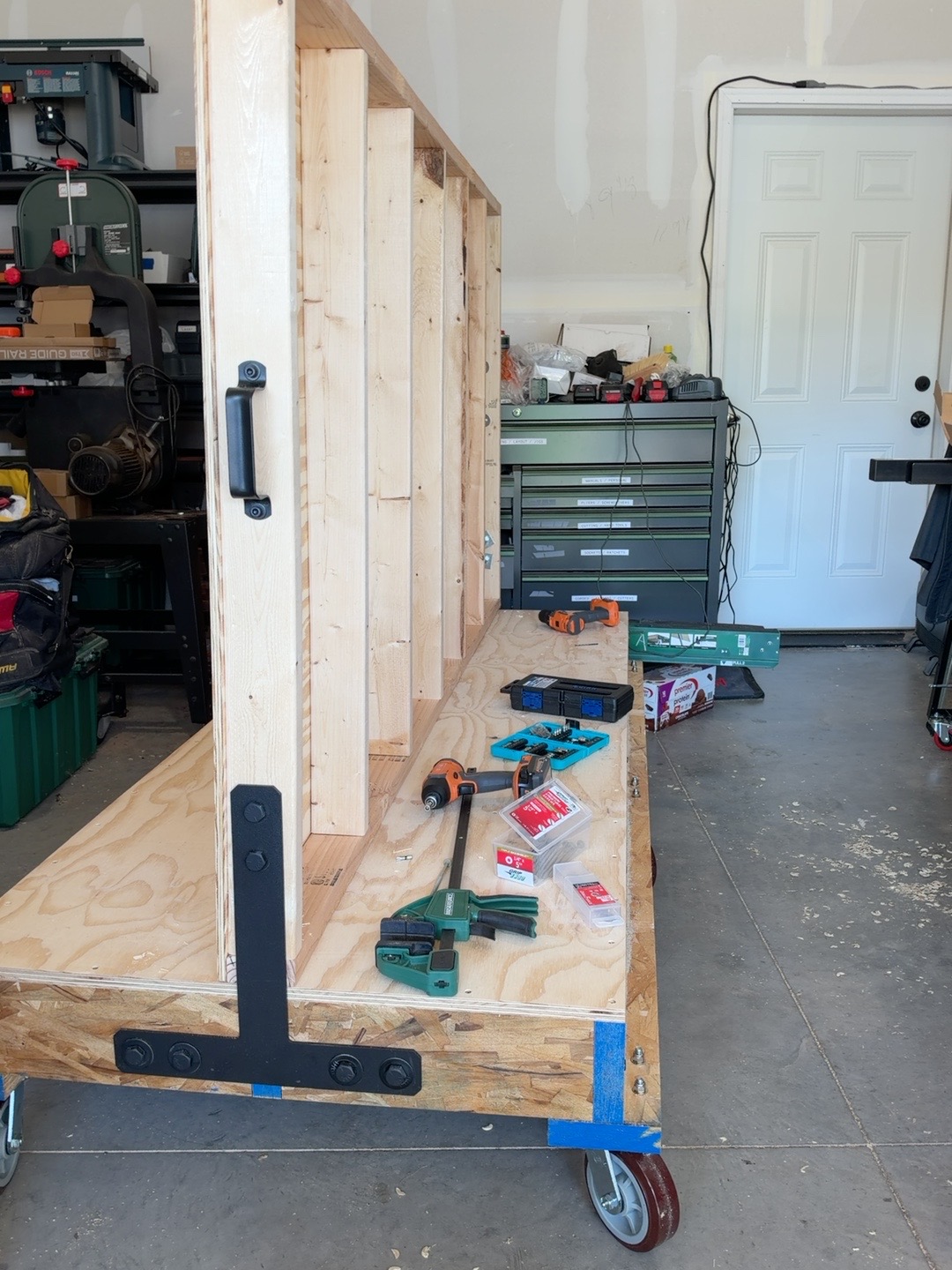

Dedicated close-ups of the T-strap bolt stack and handle hardware are not supplied; the end views show their installed positions.

No established cart working-load rating

Loading, movement & inspection

• Lock both total-lock casters before loading or unloading.
• Keep the heaviest dimensional lumber on the lowest rack arms.
• Distribute long stock across all four rack standards.
• Never treat the plywood skin alone as a structural mounting point; rack fasteners must enter framing.
• Do not climb, sit, or stand on the cart.
• Move the cart slowly on a smooth floor using the end handles; avoid pulling on rack arms or sheet goods.
• Watch for sheet-goods momentum when starting or stopping a heavily loaded cart.
• Recheck caster fasteners, T-strap bolts, wall-to-base fasteners, and rack mounts after the first loaded moves and periodically thereafter.
• The theoretical sum of caster capacities is not the cart's safe working load. Uneven floors, dynamic movement, wood connections, rack ratings, and load distribution govern practical capacity.
• Use two 8 ft padded cam-buckle straps—one near each end—to retain a partial stack of sheet goods. Only soft webbing should contact plywood, and the buckle should remain against a protected wood surface rather than the sheet face.
